Data Analyses using SQL

1 Introduction

In an effort to showcase my SQL skills as well as challenge myself to improve, I picked two challenges from the 8weeksqlchallenge and solved them. Each challenge involves a relational data from a fictitious business/company.

The purpose of this post is to document my effort in solving two (Section 2 & Section 3) challenge data analyses using SQL.

1.1 Analysis methodology

1. Explore: explore the data schema, tables, views and attributes.

2. Profile: check for duplicates in the data and distributions/frequencies.

3. Clean: clean data which involves fixing typos, type casting, treating null values, and adding categorisations.

4. Shape/Transform: reshape the data in the format needed for analysis, operations like pivot, unpivot, aggregate, transpose, append, etc.

5. The final step is to anlyse the data, spotting trends, patterns, conclusions, etc.

1.2 Query writing methodology

The first step to answer a question starts with identifying relevant tables and columns. This can done by consulting the table specification in a documentation, by running a SELECT statement or by doing both.

Once relevant tables and attributes are identified, the SQL queries are developed iteratively and incrementally. Always starting with a basic SELECT and building the query incrementally.

The final step is to perform a sanity checks by limiting the data a small the number of rows to ensure that the calculation are correct.

2 Challenge 1: Danny’s Diner

2.1 Overview

The data for this challenge is sales records from a fictitious restaurant. The dataset has three tables:

• sales
• memebers
• menu

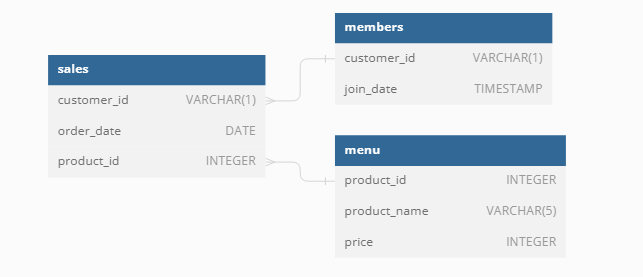

and they are related as illustrated in the following Entity Relational Diagram:

Objective of the challenge is to mine the data for petential areas of business/service improvement that can increase revenue.

2.2 Details

I used Docker to make the analysis easily reproducible by loading two servers:

• MySQL - opensource database server
• CloudBeaver - opensource web-based database editor.

Data is loaded into MySQL at instantiation time automatically.

2.3 Questions and SQL queries

1. What is the total amount each customer spent at the restaurant?

2. How many days has each customer visited the restaurant?

3. What was the first item from the menu purchased by each customer?

4. What is the most purchased item on the menu and how many times was it purchased by all customers?

5. Which item was the most popular for each customer?

6. Which item was purchased first by the customer after they became a member?

7. Which item was purchased just before the customer became a member?

8. What is the total items and amount spent for each member before they became a member?

9. If each $1 spent equates to 10 points and sushi has a 2x points multiplier - how many points would each customer have?

10. In the first week after a customer joins the program (including their join date) they earn 2x points on all items, not just sushi - how many points do customer A and B have at the end of January?

For a detailed description of the challenge check the link.

2.4 Used SQL concepts

A number of SQL concepts were used to answer the questions, often in combinations. Things like * Joins: LEFT JOIN, RIGHT JOIN, INNER JOIN * Keywords: DISTINCT * Functions: GROUP_CONCAT() , DATEDIFF(), FIRST_VALUE() * Common Table Expressions (CTE) * Expressions: CASE

2.5 Conclusions

SQL syntax simplifies the data manipulation and analysis signficantly. Having an understanding of the main concepts made learning the syntax and googling for a solution when stuck much easier.

3 Challenge 2: Pizza Runner

3.1 Overview

The data for this challenge is more challenging as it requires some cleaning as you shall see. It is customer orders and delivery records from a fictitious Pizza restaurant. The dataset has six tables:

• runner_orders
• runners
• customer_orders
• pizza_names
• pizza_recipes
• pizza_toppings

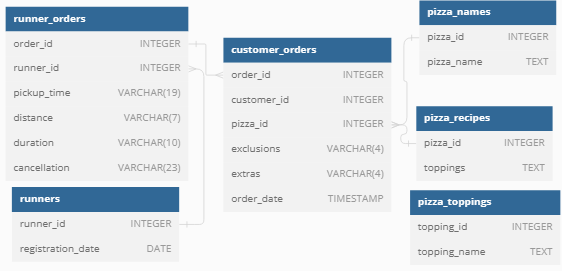

and they are related as illustrated in the following Entity Relational Diagram:

Objective is also to mine the data for petential areas of business/service improvement that can potentially increase revenue.

3.2 Details

I used Docker to make the analysis easily reproducible by loading two servers:

• MySQL - opensource database server
• CloudBeaver - opensource web-based database editor.

Data is loaded into MySQL at instantiation time automatically.

3.3 Data cleaning

Initial investigations of the tables revealed that the data required some cleaning to make it suitable for the required analyses.

I have created three new views to that contain cleaned up versions of three tables (runner_orders, customer_orders, pizza_recipes):

• Clean up runner_orders

• Clean up customer_orders

• Clean up pizza_recipes

3.4 Questions and SQL queries

3.4.1 Pizza Metrics

• How many pizzas were ordered?

• How many unique customer orders were made?

• How many successful orders were delivered by each runner?

• How many of each type of pizza was delivered?

• How many Vegetarian and Meatlovers were ordered by each customer?

• What was the maximum number of pizzas delivered in a single order?

• For each customer, how many delivered pizzas had at least 1 change and how many had no changes?

• How many pizzas were delivered that had both exclusions and extras?

• What was the total volume of pizzas ordered for each hour of the day?

• What was the volume of orders for each day of the week?

3.4.2 Runner and Customer Experience

• How many runners signed up for each 1 week period? (i.e. week starts 2021-01-01)

• What was the average time in minutes it took for each runner to arrive at the Pizza Runner HQ to pickup the order?

• Is there any relationship between the number of pizzas and how long the order takes to prepare?

• What was the average distance travelled for each customer?

• What was the difference between the longest and shortest delivery times for all orders?

• What was the average speed for each runner for each delivery and do you notice any trend for these values?

• What is the successful delivery percentage for each runner?

3.4.3 Ingredient Optimization

• What are the standard ingredients for each pizza?
• What was the most commonly added extra?
• What was the most common exclusion?
• Generate an order item for each record in the customers_orders table in the format of one of the following:
  • Meat Lovers
  • Meat Lovers - Exclude Beef
  • Meat Lovers - Extra Bacon
  • Meat Lovers - Exclude Cheese, Bacon - Extra Mushroom, Peppers
• Generate an alphabetically ordered comma separated ingredient list for each pizza order from the customer_orders table and add a 2x in front of any relevant ingredients
  • For example: “Meat Lovers: 2xBacon, Beef, … , Salami”

3.4.4 Pricing and Ratings

• If a Meat Lovers pizza costs $12 and Vegetarian costs $10 and there were no charges for changes how much money has Pizza Runner made so far if there are no delivery fees?

• What if there was an additional $1 charge for any pizza extras? For example, add cheese is $1 extra

• The Pizza Runner team now wants to add an additional ratings system that allows customers to rate their runner, how would you design an additional table for this new dataset - generate a schema for this new table and insert your own data for ratings for each successful customer order between 1 to 5.

• Using your newly generated table - can you join all of the information together to form a table which has the following information for successful deliveries?

  • customer_id
  • order_id
  • runner_id
  • rating
  • order_time
  • pickup_time
  • Time between order and pickup
  • Delivery duration
  • Average speed
  • Total number of pizzas

• If a Meat Lovers pizza was $12 and Vegetarian $10 fixed prices with no cost for extras and each runner is paid $0.30 per kilometre traveled - how much money does Pizza Runner have left over after these deliveries?

3.4.5 Bonus question

• If Danny wants to expand his range of pizzas - how would this impact the existing data design? Write an INSERT statement to demonstrate what would happen if a new Supreme pizza with all the toppings was added to the Pizza Runner menu?

For a detailed description of the challenge check the link.

3.5 Used SQL concepts

A number of SQL concepts were used to answer the questions, often in combinations. Things like * Concept: Subqueries, CTE, Views, Union * Joins: LEFT * Keywords: DISTINCT * Functions: IF(), HOUR, WEEKDAY(),DAYNAME(), DAYOFYEAR, TIMEDIFF(), DATE_ADD * Expressions: CASE, ALTER TABLE, DROP TABLE, CREATE TABLE, INSER INTO, UPDATE

3.6 Conclusions

SQL is a joy to work with for especially when the data is relational and whenever the volume of data big that it doesn’t fit in local memory. Having said, I find it still compelling to use SQL even with the data can fit in local memory.
